PostSubject: My Solid Axle Swap build   My Solid Axle Swap build Empty27th January 2012, 1:09 am

hey guys. just got on here, and its seems pretty good, and what not...anyways, just figured i would post up my build thread on my 95 f150. it started out life as a leveled out 95 ford sittin on 31's with a independent front suspension. that just wasnt doing it for me so i decided a SAS was in order. front axle is a d44 out of a 79 ford bronco, and the rear is just a simple ford 8.8. both have lockers, and the goal of my "build" was to have a decent suspension travel. now.....when i did all my research and math, with what i was doing, 35's were going to fit the truck perfect. first i did the rear swap...the 35's fit perfectly. ok....move on to the front and after done with that the truck looked like a prerunner. it sat NOSE HIGH! i cant be having any of that..lol. what did it was the front suspension is meant for a 79 ford and the rear is meant for a 95 ford...with all the aftermarket parts on the front that changed my numbers up...anyways, instead of lowering the front i lifted the rear by doing a shackle flip. so now these 35's are looking a tad bit small, so when these wear out ill be going 37's. anyways, on to some pics of the truck before, during surgery, and after. i think you will see a tad bit of difference. ill do my best at putting them in order..


first off, how it was before. leveled out with 31's
My Solid Axle Swap build Dsc03388

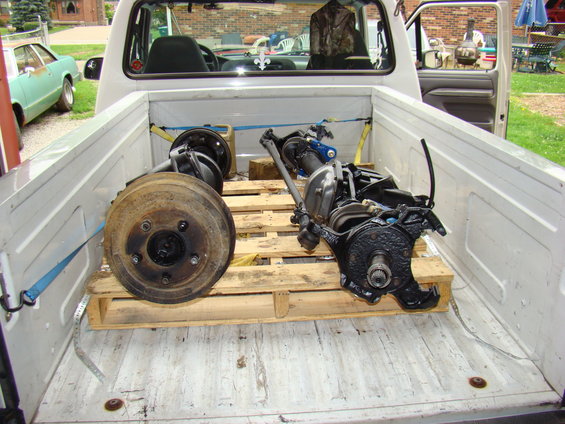

and here are the transplants pre swap.
My Solid Axle Swap build Dsc05022

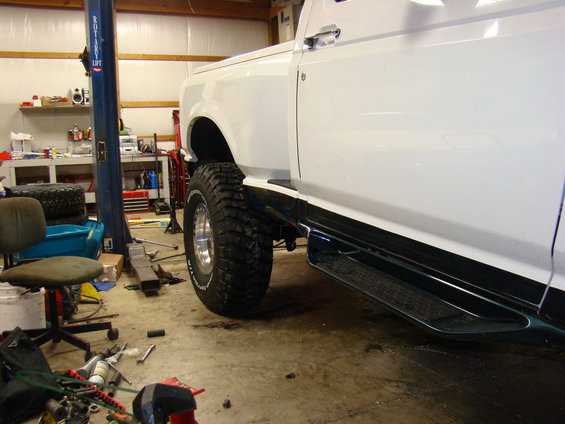

lifted the rear
My Solid Axle Swap build Dsc05032

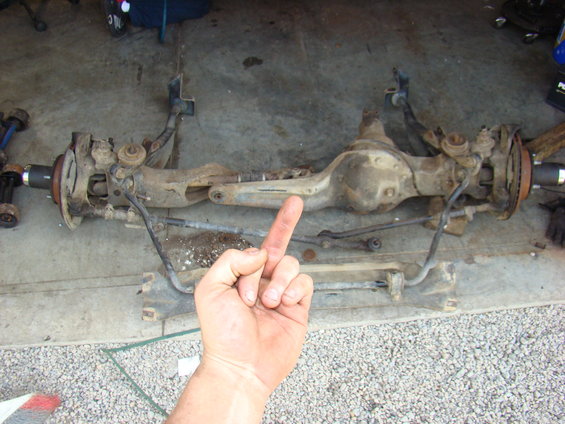

then started tearing down the front! bye bye independent front suspension!
My Solid Axle Swap build Dsc05036
My Solid Axle Swap build Dsc05037
next i hung some coil buckets mounted springs and hung the front axle, and started doing some geometry...
My Solid Axle Swap build Dsc05043

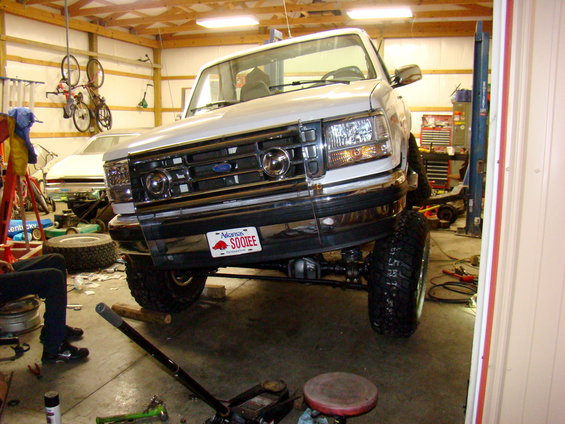

next we flexed it without shocks or brakes yet to see where i needed to put my upper shock mounts
My Solid Axle Swap build Dsc05045

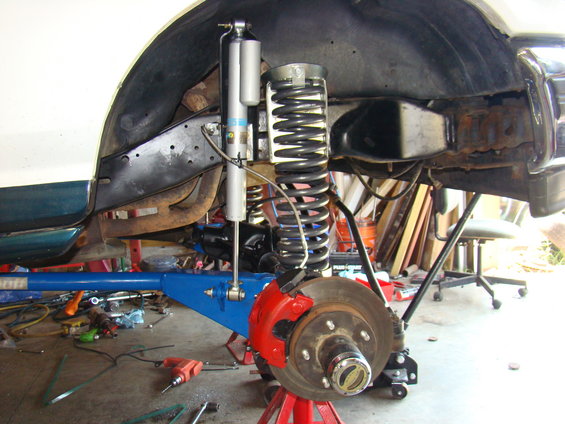

then brakes, and shocks were put on....this is the CLEANEST its ever been..lol. also in this pic, you can see the brake lines that come out of the frame on each side. believe it or not, even though they are extended, they werent long enough at full flex, so later on i swapped to a single center drop brake line and ran the lines along the axle.
My Solid Axle Swap build Dsc05048

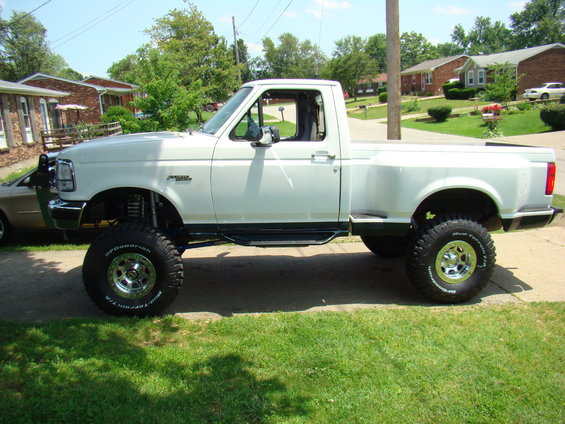

fresh outa surgery with the old track bar (swapped for one beefier) and sporting the prerunner look i was talking about earlier.
My Solid Axle Swap build Dsc05052
My Solid Axle Swap build Dsc05050

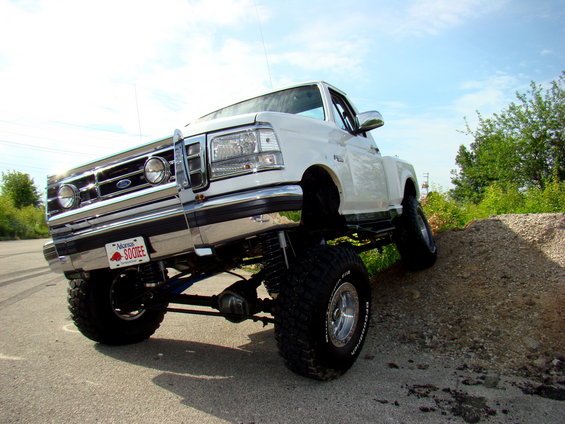

and of coarse the next thing you gotta do is test out what youve put so much time and money into. so accordingly, i did a little flexing.
My Solid Axle Swap build Dsc05061
My Solid Axle Swap build Dsc05469


Next (a couple months later) my trans decided to take a shit. GREAAATT....fml. so i upgraded to the stronger zf5 trans out of a f350, and a different transfer case that enables me to run a jointed rear driveshaft which helps out on my driveshaft angle. tore both down, made new again, and installed. heres a couple of pics of that.

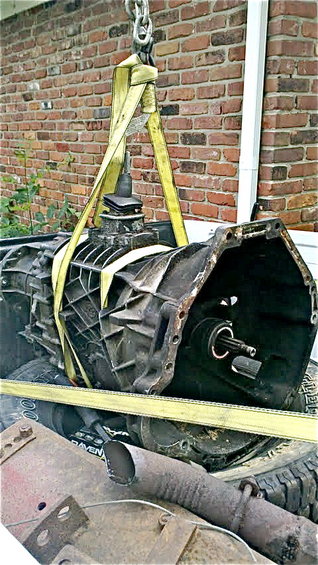

when i brought it home
My Solid Axle Swap build Mail
and ready to be swapped!
My Solid Axle Swap build Dsc05462
and here it is with the refreshed t case.
My Solid Axle Swap build 20111009_132947_555

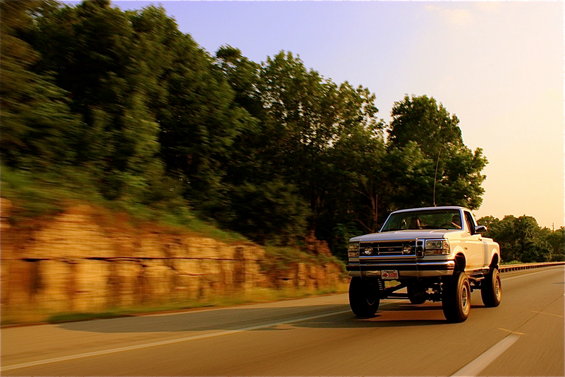

and then its back on the road again. finally!
My Solid Axle Swap build 257791_2107294126197_1360882021_32484660_67302

so in a nutshell there is my truck and the build thats gone on in the past years time. now......i need some people to wheel with!

Back to top Go down
View user profile
ZJ_flexxxer
Admin
ZJ_flexxxer

Posts : 421
Points : 545
Join date : 2012-01-24
Age : 30
Location : Louisville

My Solid Axle Swap build Empty
PostSubject: Re: My Solid Axle Swap build   My Solid Axle Swap build Empty27th January 2012, 1:27 am

awesome job man. this thing looks like something they would of built on spike's powerblock. i also want your shocks drool

__________________________________________________
94 Grand Cherokee - 4.5" lift, 32" swampers, skid plates, rocker rails. Soon to come - 8.8 rearend, adjustable control arms, 4.10 gears, 35's
Back to top Go down
View user profile http://www.502mudtrucks.com
fishforlife2007

fishforlife2007

Posts : 10
Points : 12
Join date : 2012-01-27

My Solid Axle Swap build Empty
PostSubject: Re: My Solid Axle Swap build   My Solid Axle Swap build Empty27th January 2012, 1:39 am

haha thanks man. it has been a labor of love though. believe it or not, the whole suspension lift was done just in a weekends time by myself and another co worker. and the shocks are awesome, but im thinking of dual shocking the front end, but we will see. i got them from rustys offroad.

__________________________________________________
95 F150 solid axled swapped, sterling 10.25 in the rear and a d44hd in the front. heavy duty zf trans swapped in running on 37'' militarys
Back to top Go down
View user profile
ZJ_flexxxer
Admin
ZJ_flexxxer

Posts : 421
Points : 545
Join date : 2012-01-24
Age : 30
Location : Louisville

My Solid Axle Swap build Empty
PostSubject: Re: My Solid Axle Swap build   My Solid Axle Swap build Empty27th January 2012, 1:51 am

fishforlife2007 wrote:
it has been a labor of love though.

i know what u mean. i've spent countless hours doing numbers of things down to the stupidest little detail on my rig but it's all because i enjoy doing it. but i'm like that with everything, if i own it then i have to customize something on it to call it my own lol

__________________________________________________
94 Grand Cherokee - 4.5" lift, 32" swampers, skid plates, rocker rails. Soon to come - 8.8 rearend, adjustable control arms, 4.10 gears, 35's
Back to top Go down
View user profile http://www.502mudtrucks.com
fishforlife2007

fishforlife2007

Posts : 10
Points : 12
Join date : 2012-01-27

My Solid Axle Swap build Empty
PostSubject: Re: My Solid Axle Swap build   My Solid Axle Swap build Empty27th January 2012, 1:56 am

glad we are on the same page here...lol

__________________________________________________
95 F150 solid axled swapped, sterling 10.25 in the rear and a d44hd in the front. heavy duty zf trans swapped in running on 37'' militarys
Back to top Go down
View user profile
killzone90



Posts : 125
Points : 152
Join date : 2012-01-25

My Solid Axle Swap build Empty
PostSubject: Re: My Solid Axle Swap build   My Solid Axle Swap build Empty28th January 2012, 3:19 pm

thats a nice truck
Back to top Go down
View user profile
fishforlife2007

fishforlife2007

Posts : 10
Points : 12
Join date : 2012-01-27

My Solid Axle Swap build Empty
PostSubject: Re: My Solid Axle Swap build   My Solid Axle Swap build Empty28th January 2012, 7:41 pm

thanks man!

__________________________________________________
95 F150 solid axled swapped, sterling 10.25 in the rear and a d44hd in the front. heavy duty zf trans swapped in running on 37'' militarys
Back to top Go down
View user profile
Jakob

Jakob

Posts : 19
Points : 25
Join date : 2012-01-25
Location : Louisville, KY

My Solid Axle Swap build Empty
PostSubject: Re: My Solid Axle Swap build   My Solid Axle Swap build Empty15th March 2012, 2:15 pm

Really came out nice, makes it looks like a more solid truck aside from just better looking aesthetically.
Back to top Go down
View user profile
fishforlife2007

fishforlife2007

Posts : 10
Points : 12
Join date : 2012-01-27

My Solid Axle Swap build Empty
PostSubject: Re: My Solid Axle Swap build   My Solid Axle Swap build Empty7th April 2013, 8:18 pm

thanks. since then ive upgraded to a sterling 10.25 in the rear and converted the front 44 to 8 lug. now running on military 37's

found a hole to park in
http://sphotos-a.xx.fbcdn.net/hphotos-ash3/552297_431225313604131_875068052_n.jpg

__________________________________________________
95 F150 solid axled swapped, sterling 10.25 in the rear and a d44hd in the front. heavy duty zf trans swapped in running on 37'' militarys
